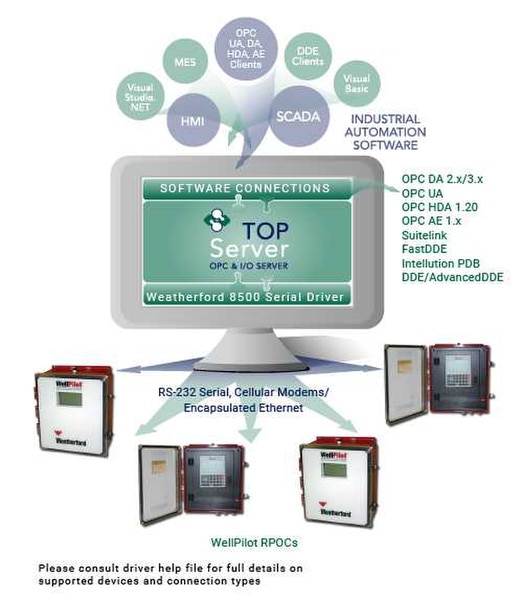

The TOP Server Weatherford 8500 driver provides a communication interface for Weatherford Rod Pump Controllers (RPC) supporting the Weatherford 8500 Serial protocol including via Ethernet/serial convertors/radios/terminal services.
Weatherford RPCs are widely used at wellhead facilities in the Oil & Gas Industry and are known by many names including Baker Hughes, WellPilot, ePIC and others listed below.
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite: TOP Server Oil & Gas Suite.
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment
Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
Everything you need to get started, configure, and troubleshoot your driver
- Multi-threaded architecture for high scalability

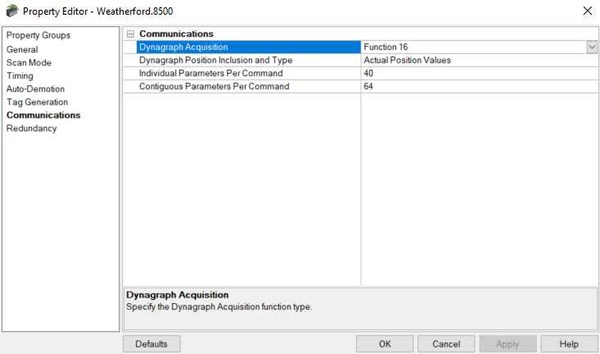

- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here

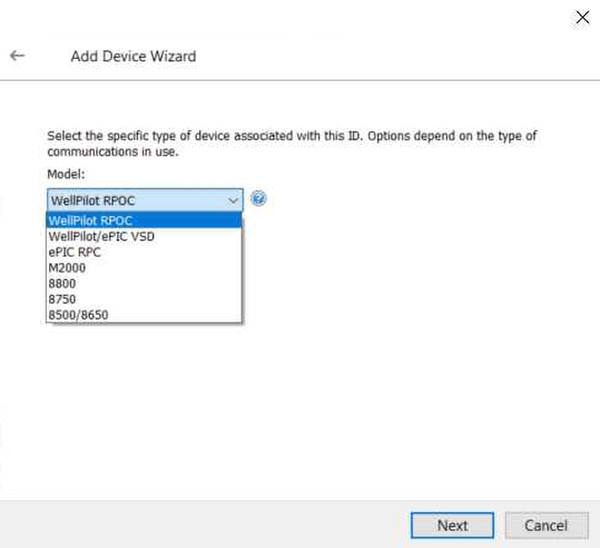

Weatherford Rod Pump Controllers
- WellPilot RPOC
- WellPilot/ePIC VSD
- ePIC RPC
- 8800
- 8750
- 8500/8650
Supported Protocols / Networks
- Weatherford 8500 Serial Protocol
- RS-232 Serial Point-to-Point
- Ethernet Encapsulated Serial for using Ethernet/Serial convertors, Device Servers, or Terminal server hardware
Note: Don't See Your Device Listed? Contact Us
Everything you need for reliable industrial connectivity
Maximum Number of Channels & Devices: Channels - 1024; Devices per Channel - 4095; COM Port Range - 1 to 999
Supports Downhole Dynagraph data
Supports event directory retrieval
Supports surface and downhole card retrieval
Supports valve check data item syntax
Optimized for extreme conditions including low bandwidth and noisy communication channels
Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
Modem Support
Automatic Tag Generation
- Support for automatic detection of Position Inclusion and Type Character
- Supports Inter-Request Delay
- Supports Connection Sharing for devices supporting more than one communications protocol
