The TOP Server® Triconex TSAA Ethernet Driver provides an OPC communication interface to Triconex safety controller devices.

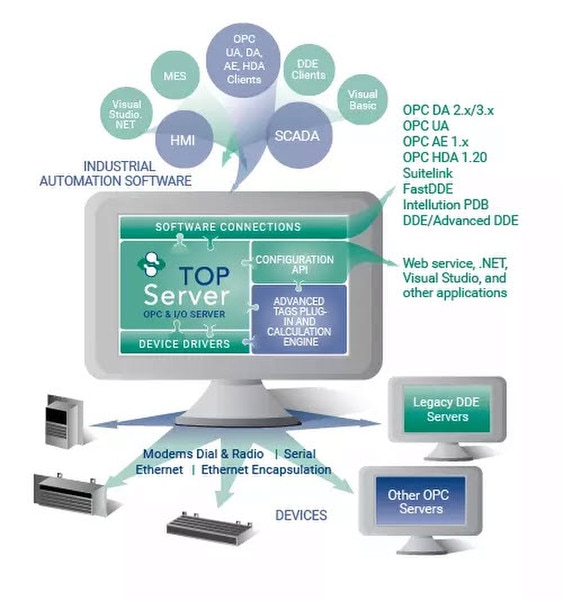

This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Triconex Tricon or Trident Control Systems using the TSAA Protocol over Ethernet connections.
Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment
Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
Everything you need to get started, configure, and troubleshoot your driver
Multi-threaded architecture for high scalability
Runtime changes via wizard-based configuration interface with intuitive Properties Editor
Secure User Management
Built-in Device/Network Redundancy
Auto-Demotion (Slow Polling)
Extensive communication and server diagnostics (OPC / Communications / Event Log)

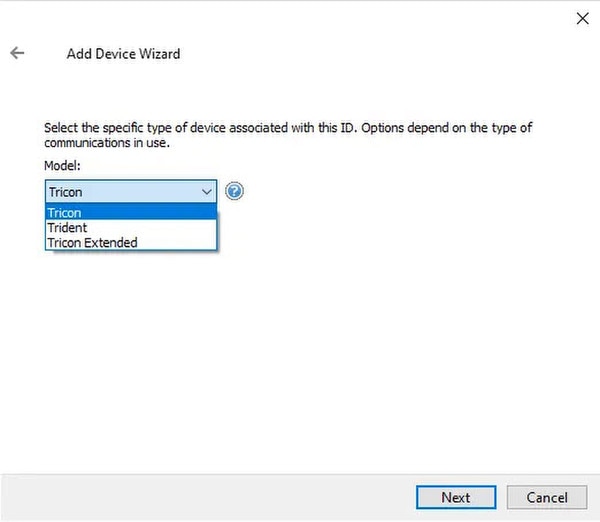

Triconex Safety Systems
- Triconex Tricon
- Triconex Trident
- Tricon Extended Controllers
Supported Protocols / Networks
- Triconex System Access Application (TSAA)
- TCP/IP Ethernet
Note: Don't See Your Device Listed? Contact Us
Everything you need for reliable industrial connectivity
Maximum Number of Channels & Devices: Channels - 64; Devices per Channel - 63
Has the ability to automatically create tags for all variables in a TriStation project using XML
Supports multiple network adapters

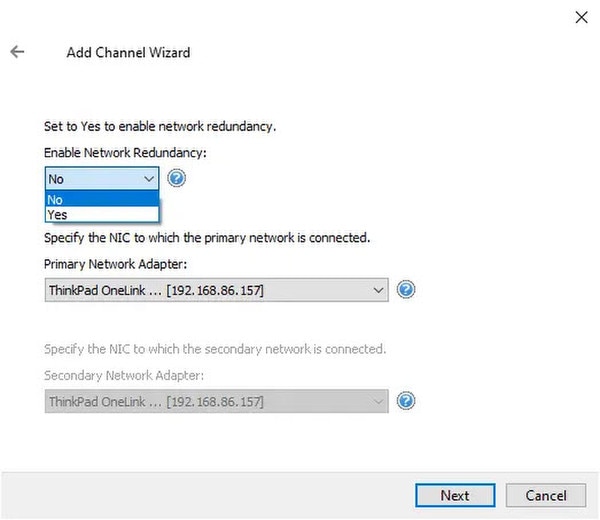

Supports network redundancy using network adapters
System tags indicate to client application the currently active network connection

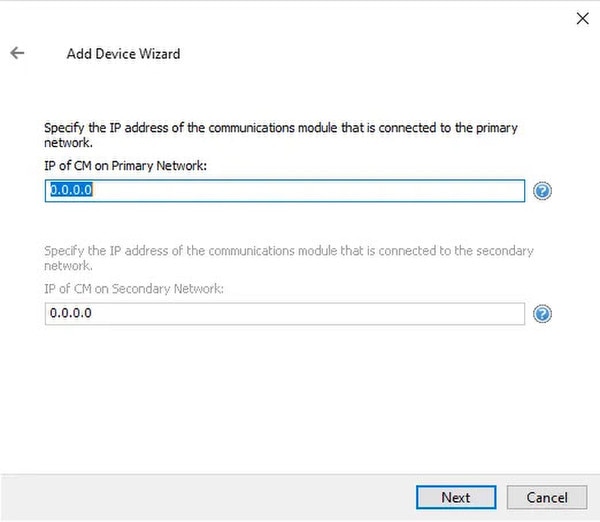

- Supports Redundancy NCM modules and Redundant NICs in the PC
- Import tag configuration from TriStation 1131 XML
- Supports Modbus Aliases
- Multiple controllers per network supported
- Timestamping from the device (Trident only)
- Optimized communications allow each device to have a separate thread/channel of communications (up to 64 devices)
- User-selectable socket connection termination on device response timeout
- Specify a Network Interface Card at the channel level (Details)
- Includes special driver System Tags: PrimaryNetworkError, SecondaryNetworkError, UpdatesFromPrimary, and UpdatesFromSecondary
