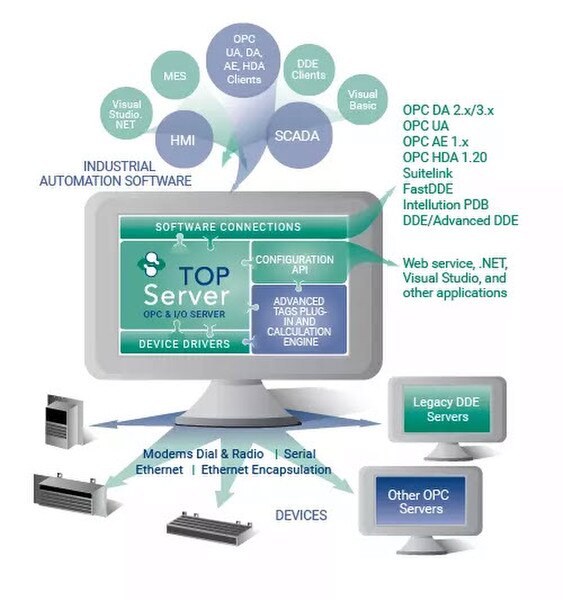

The TOP Server® Toyopuc Suite of drivers provides the ultimate in flexibility for connectivity to Toyopuc PLCs found most often in Toyota manufacturing facilities, enabling integration with other software applications using OPC DA, OPC UA, and AVEVA SuiteLink.
This suite includes connectivity to Toyopuc devices supporting the PC3 and PC2 Ethernet Computer Link or Serial Computer Link protocol, including Toyopuc PC3 and PC2 Interchange, PC3 and PC10G, and PC2 Series, as well as any Computer Link compatible device.
This item is a Suite of drivers containing:
Proven benefits that help you deploy faster and operate more reliably
Modern Substation Protocol
IEC 61850 reduces data management effort with symbolic addressing and self-description services
Secure Communications
SSL/TLS certificate-based authentication ensures secure connections to critical infrastructure
Automatic Configuration
Import device configuration from SCL files or auto-discover from device for rapid deployment
Flexible Licensing
Choose between Lite (1-10 devices) or Unlimited licensing to match your project requirements
Everything you need to get started, configure, and troubleshoot your driver
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here

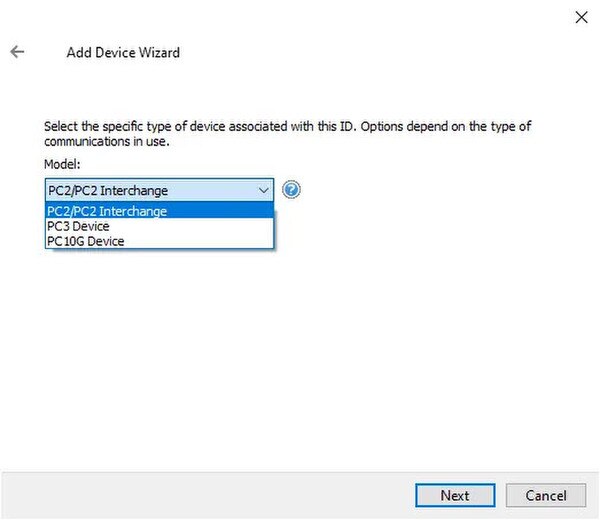

Toyopuc PLCs & Controllers
- PC3/PC2 Interchange
- PC3
- PC10G
- PC2 Series or any Computer Link compatible device
Supported Protocols / Networks
- Toyopuc PC3/PC2 Ethernet Computer Link
- Toyopuc Computer Link
- TCP/IP Ethernet
- Serial RS-232
- Serial RS-422
- Serial RS-485
- Ethernet Encapsulation for Serial Protocols
Note: Don't See Your Device Listed? Contact Us
Everything you need for reliable industrial connectivity
Supports the following Memory Types: X, Y, I, O, R, S, Z, L, C., T., XW, YW, IW, OW, SW, LW, C, T, D, F, W, and RW
Supports accessing D memory as string data with HiLo/LoHi byte ordering

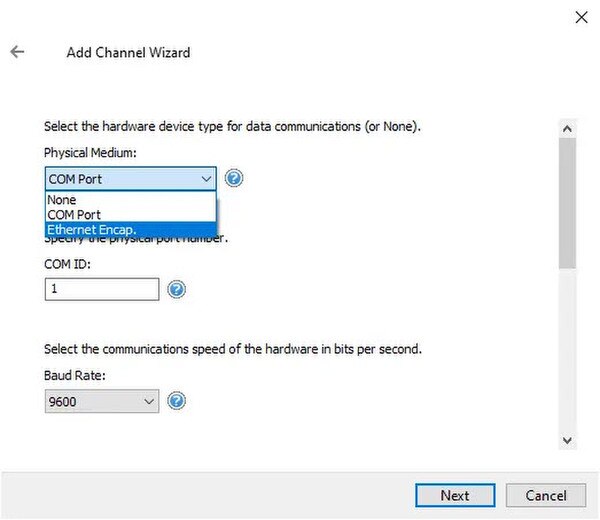

Supports Ethernet Encapsulation for using serial protocols over an Ethernet-to-Serial converter
- Additional diagnostics functions provided for application tuning
- Supports Multi Point Random Read operation for faster data access
- Multi-Drop Serial Communications
- Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
