TIWAY TOP Server and IO Driver + 1 Year Support & Maintenance Agreement
NOTE: This software makes a serial connection to the Hostlink or Unilink Host Adapter interface to the TIWAY network - this software does not support the TIWAY card that goes into your computer.
The TOP Server® TIWAY Host Adapter Driver provides a communication interface to Siemens TIWAY compatible controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.

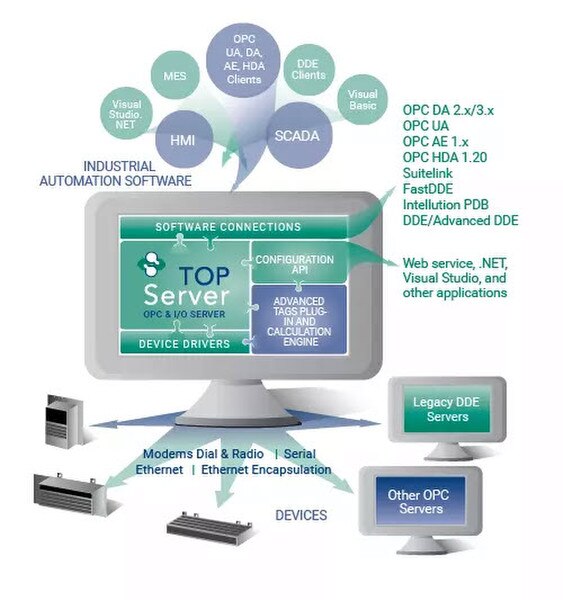

This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and TIWAY Secondary Devices supporting the Non-Intelligent Terminal Protocol (NITP) using the TIWAY Hostlink or Unilink Host Adapter to bridge from the TIWAY network to a serial connection on the PC. The driver also supports the use of Ethernet Gateways/Terminal servers attached to the serial port of the TIWAY adapter.

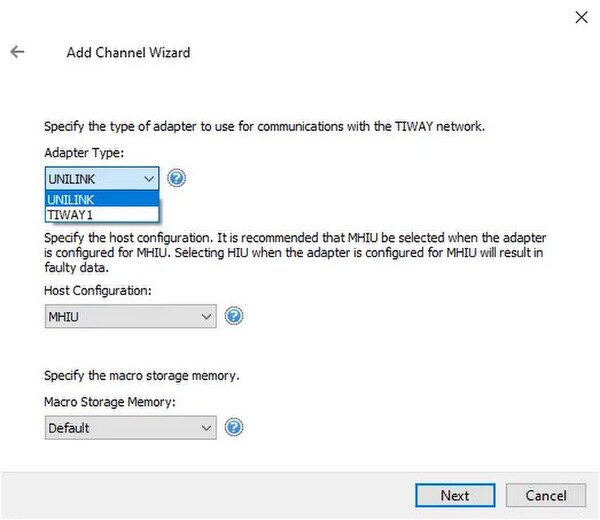

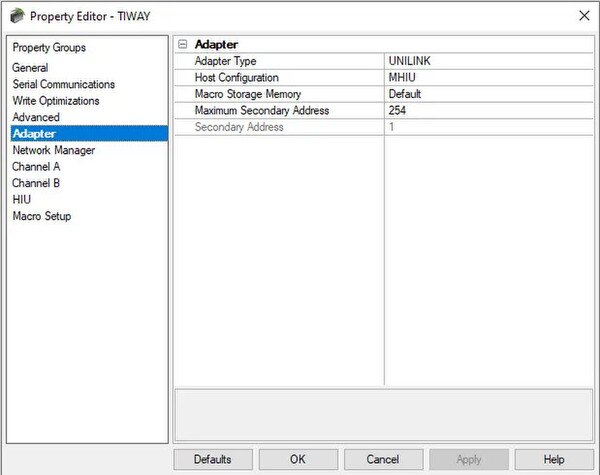

The driver makes requests to the TIWAY Host Adapter unit, which then forwards the request on to the actual network. When a response is received, the Host Adapter returns the response to the driver. The driver can be configured to control the behavior of the adapter, or the adapter can be configured with DIP switches on the unit to tell the driver to respect these settings. Once connected to a TIWAY 1 network, the driver can communicate with up to 254 secondary devices. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
- Supports TIWAY Host and NITP Host communications with Texas Instruments PLCs
- Serial communication support (RS-232)
- Automatic tag database generation
- Supports all data types exposed by supported devices
- Optimized communications based on upstream client demand
Proven benefits that help you deploy faster and operate more reliably
Modern Substation Protocol
IEC 61850 reduces data management effort with symbolic addressing and self-description services
Secure Communications
SSL/TLS certificate-based authentication ensures secure connections to critical infrastructure
Automatic Configuration
Import device configuration from SCL files or auto-discover from device for rapid deployment
Flexible Licensing
Choose between Lite (1-10 devices) or Unlimited licensing to match your project requirements
Everything you need to get started, configure, and troubleshoot your driver
Everything you need for reliable industrial connectivity
Real-Time Data Access
Access live process data from your devices with minimal latency and maximum reliability.
Device Configuration
Read and write configuration parameters directly from your SCADA or HMI application.
Automatic Reconnection
Intelligent connection management automatically recovers from network interruptions.
Multi-Protocol Support
Supports multiple communication protocols for flexible deployment options.
High Performance
Optimized algorithms deliver maximum throughput with minimal system overhead.
Diagnostic Logging
Comprehensive logging helps troubleshoot issues and monitor driver performance.
