Square D Serial- Symax/PowerLogic TOP Server and IO Driver + 1 Year Support & Maintenance Agreement
- Details
- Key Features
- Technical Specifications
- Resources and Documentation
- Standard Features
- Supported Devices
- Advanced Features
The TOP Server® Square D Driver provides a communication interface to Square D controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.

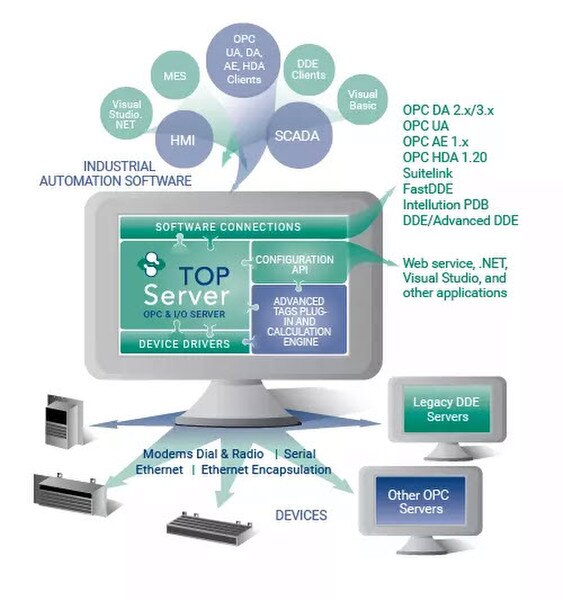

This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and SquareD Symax PLCs and PowerLogix power monitoring devices supporting the SY/MAX Point-to-Point Communications Protocol over Serial connections. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite.
- Maximum Number of Channels & Devices: Channels - 100; Devices per Channel - 200; NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture
- Direct Support for the Square D PowerLogic 2000 Power Line Monitoring system
- Supports full address range and all data types

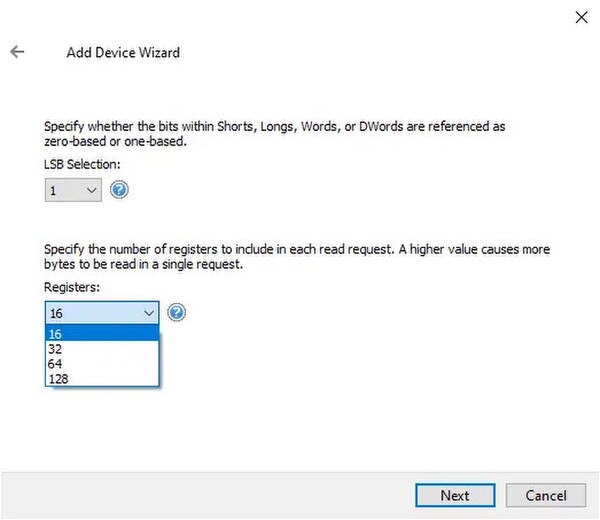

- User defined one-based or zero-based bit addressing
- User defined read block size to optimize communications with device
Communication
Protocols Supported
OptiLogic
Connection Types
UDP Ethernet
Max Devices per Channel
100 channels, 1024 devices per channel
Everything you need to get started, configure, and troubleshoot your driver
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration interface with intuitive Properties Editor
- Secure User Management
- Built-in Device/Network Redundancy
- Auto-Demotion (Slow Polling)
- Extensive communication and server diagnostics (OPC / Communications / Event Log)
- For all TOP Server built-in features, click here
Square D Devices
- ✓Square D PowerLogic Monitors
- ✓SY/MAX Programmable Controllers
Note: Don't See Your Device Listed? Contact Us
- Supports the full 8 Layer Route
- User defined one-based or zero-based bit addressing
- User defined read block size to optimize communications with device
- Modem Support: Automatic dial configuration; Multiple phone number management
- Adjustable RTS Flow timing for Radio Modem communications
