Simatic/TI 505 Suite TOP Server-Serial and Ethernet Drivers for TI5x5 PLCs and IO Driver + 1 Year Support & Maintenance Agreement
- Details
- Key Features
- Why Choose This Driver?
- Resources and Documentation
- Supported Devices
- Key Features & Benefits
- Advanced Features

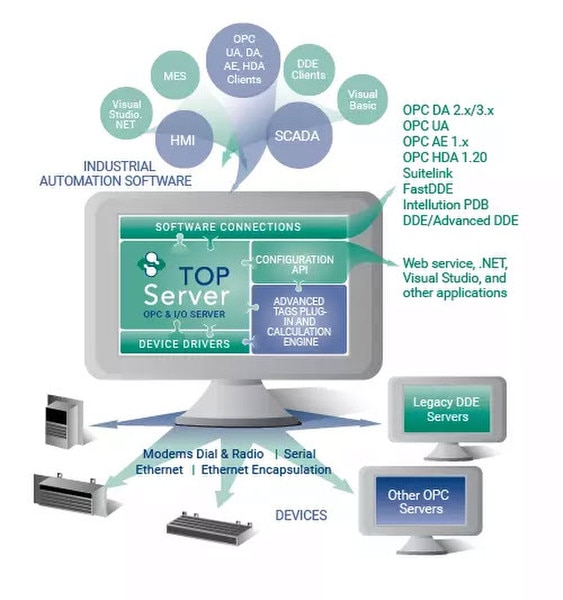

The Simatic/TI 505 Ethernet driver works in conjunction with TOP Server® to provide data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and PLCs using the SIMATIC CAMP/CAMP Packed Task Code protocols over TCP or UDP Ethernet.
It is intended for use in communicating with Simatic/TI 505 Programmable Logic Controllers via a CTI2572 or a CP1434-TCP Ethernet card in the PLC rack to provide the ethernet connection on the PLC.
Wide 5x5 Model Support & flexible addressing and data types
- Supports TCP/IP and UDP Ethernet transport
- Supports PLC memory coverage broadly (including areas such as drums, alarms, and loops)
- Supports multiple simultaneous device connections to improve throughput

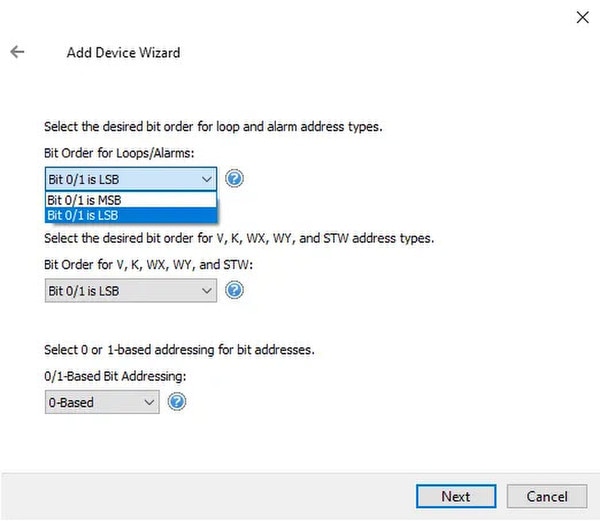

- Supports both 0-based and 1-based bit addressing, plus configurable bit order, for common address families (for example V, K, WX, WY, STW, and loop/alarm types)

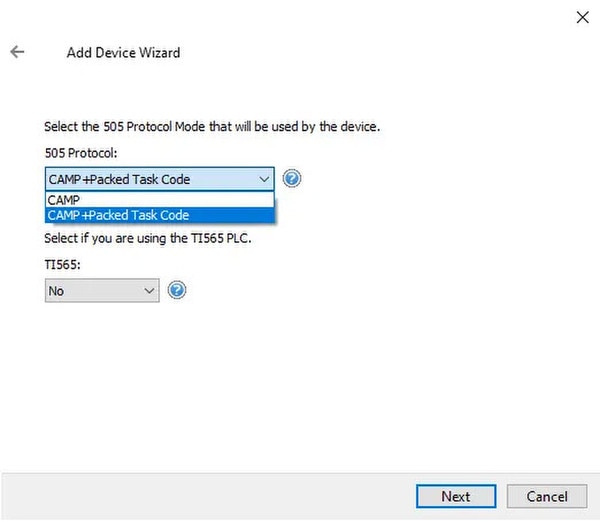

- Supports CAMP and Packed Task Code protocol formats
- Supports Ethernet Encapsulation for using Ethernet-to-Serial converter
- Multi-threaded architecture for high scalability
- Runtime changes via wizard-based configuration & Properties Editor
- Secure user management
- Built-in device/network redundancy
- Auto-demotion (slow polling)
- Diagnostics (OPC / comms / event log)
- For all TOP Server built-in features, click here
Proven benefits that help you deploy faster and operate more reliably
Dual Connectivity Options
Both Ethernet and Serial drivers included for maximum flexibility in connecting to Simatic/TI 505 PLCs
Native Protocol Support
Native support for NITP (ASCII) and Transparent Byte (binary) protocols ensuring reliable data exchange
Proven Reliability
Extensively tested with Simatic/TI 505 controllers across manufacturing and process applications
High Performance
Optimized for fast data throughput with configurable communication parameters and error handling
Everything you need to get started, configure, and troubleshoot your driver
TOP Server operating system support information
Check compatibility with your operating system
TOP Server How-To Videos / Tutorials
Watch step-by-step video tutorials
TOP Server How-To Application Notes
Access detailed application notes and guides
TOP Server Quick Start Guide
Get started quickly with our comprehensive guide
TOP Server Troubleshooting Guide
Find solutions to common issues
TOP Server current/past release notes
View release notes for all versions
Simatic/TI 505 Ethernet Driver Help File (PDF)
Complete driver documentation for Ethernet connectivity - Version 1.050
Simatic/TI 505 Serial Help File (PDF)
Complete driver documentation for Serial connectivity
TOP Server specific blog posts
Read technical articles and best practices
Software Toolbox blog home
Explore all blog content from Software Toolbox
Subscribe to blog
Get notified of new articles and updates
Looking for Siemens hardware?
Visit Siemens for PLC hardware information
Free Demo Download
Download a fully functional 2-hour demo of TOP Server
Siemens Simatic/TI 505 Series PLCs
- CP 2572
- CTI 2500
- CTI 2500 Series PLCs (via on-board Ethernet)
- CTI 2572
- CTI 2572-A
- TI-525 (TI525) via CP2572 Ethernet
- TI-545 (TI545) via CP2572/CP2572A Ethernet and CP1434-TCP
- TI-555 (TI555) via CP2572/CP2572A Ethernet and CP1434-TCP
- TI-565 (TI565)
Note: Wide 5x5 model support - Formerly manufactured by Texas Instruments, now supported by Siemens as Simatic/TI 505 series. Ethernet connectivity via CTI2572, CP2572, CP2572-A, or CP1434-TCP modules.
Everything you need for reliable industrial connectivity
2 Drivers Included

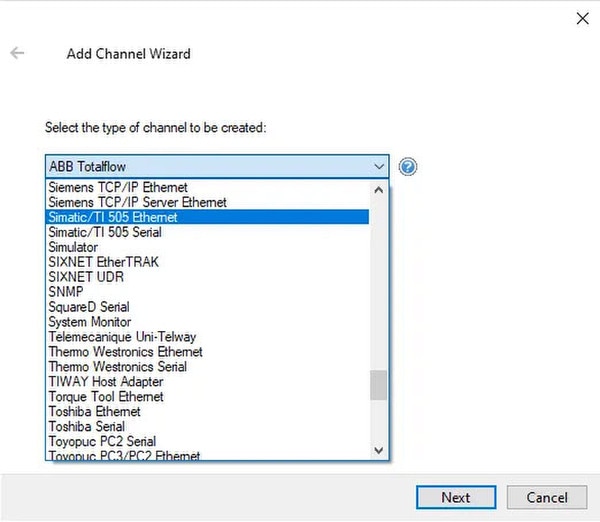

Simatic/TI 505 Ethernet Driver, Simatic/TI 505 Serial Driver
Multi-Protocol Support
Native TI 505 protocol over both Ethernet TCP/IP and Serial RS-232/RS-422/RS-485
Multiple Device Support
Connect to multiple Simatic/TI 505 PLCs simultaneously - up to 100 channels and 31 devices per channel
Industrial-Grade Reliability
Robust error detection and recovery for harsh industrial environments
- Configurable request sizing for performance tuning
- Optimized communications model allowing concurrent device communications (up to 100 devices noted)
- Option to select the NIC (network interface card) at the channel level
- Socket connection handling options on device response timeouts
- Supports TCP and UDP device communications
- Supports zero or one-based bit addressing
- Supports configurable HiLo/LoHi bit order for V, K, WX, WY, STW, and loop/alarm address types
