The TOP Server® Scanivalve Ethernet Driver provides a communication interface to Scanivalve pressure and temperature measurement systems with the same level of performance, stability and ease of configuration as any other TOP Server driver.
This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and DSA3200/DTS3250 devices supporting Scanivalve Ethernet protocol over TCP connections. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
- Automatically generates all addressable tags for the device
- DTS device: +/- .5 deg C long term accuracy and 10Hz/channel/second sampling speed
- DSA device: +/- .05% full scale long term accuracy, 200Hz/channel/second sampling speed, and multiple pressure ranges available per DSA
- Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
Communication
Protocols Supported
Scanivalve Ethernet Protocol
Connection Types
TCP/IP Ethernet
Max Devices per Channel
100 channels, 8192 devices per channel
Everything you need to get started, configure, and troubleshoot your driver
TOP Server Operating System Support Information
Additional resources and documentation
TOP Server How-To Videos / Tutorials
Video tutorials and application guides
TOP Server How-To Application Notes
Video tutorials and application guides
TOP Server Quick Start Guide
Video tutorials and application guides
TOP Server Troubleshooting Guide
Video tutorials and application guides
Scanivalve Ethernet Help File (PDF)
Driver documentation and help files
TOP Server current/past release notes
Driver documentation and help files
Perpetual License Information
Additional resources and documentation
Support & Maintenance
Additional resources and documentation
Software Toolbox Knowledge Base
Additional resources and documentation
Looking for Scanivalve hardware?
Additional resources and documentation

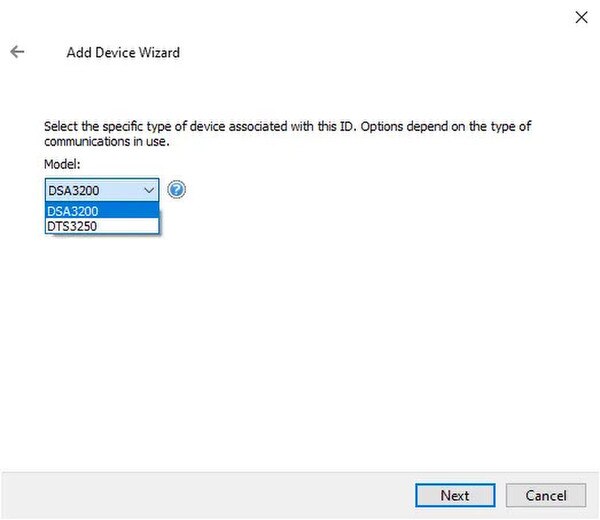

Scanivalve DSA Series
✓
DSA3200
Scanivalve DTS Series
✓
DTS3250
For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation
- Automatic Tag Database Generation
- Optimized Multi-Device Communications
- User-Selectable Connection Termination
- Network Interface Card Selection
