Power and Utilities Suite TOP Server + 1 Year License Maintenance
- Details
- Resources and Documentation
- Technical Specifications
- Supported Devices
- Key Features
- Advanced Features
- Why Choose This Product?
The TOP Server Power and Utilities Suite provide a license for use on a single computer for the most popular drivers required in power generation, transmission, and distribution applications. Whether your application is local or geographically distributed, the TOP Server Power and Utilities Suite install easily and is quickly configured to deliver the data you need to your HMI or SCADA, DCS, or data historian.
For applications where multiple industry standard protocols are required such as DNP3, IEC 60870-5, Modbus, and IEC 61850, the Power and Utilities Suite is an economical option. With TOP Server's plug in architecture, you can combine the TOP Server Power and Utilities Suite with other TOP Server industry suites or add additional suites and drivers from the TOP Server driver list.
Drivers in this suite include:

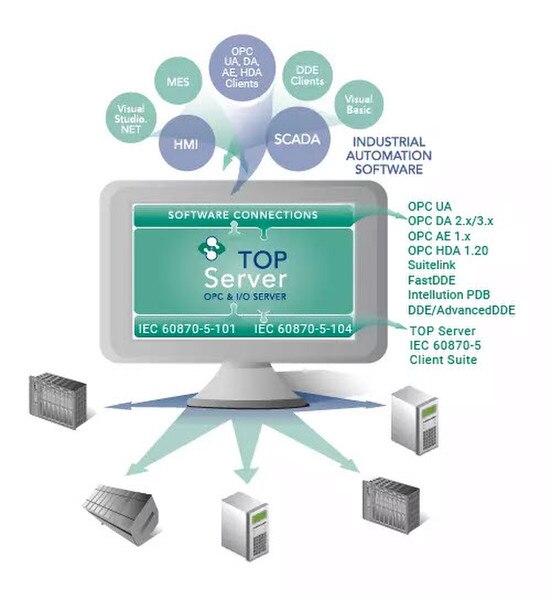

IEC 60870-5 Suite, includes drivers for IEC 60870-5-101 and IEC 60870-5-104

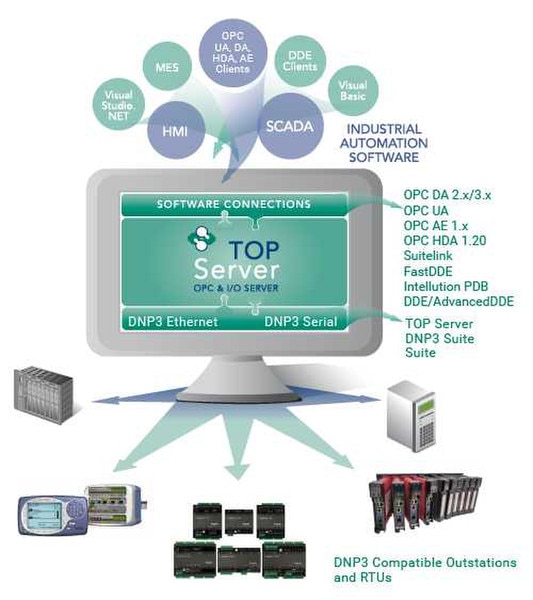

DNP3 Ethernet with WITS 1 and 2 support, unlimited device count
Everything you need to get started, configure, and troubleshoot your driver
- TOP Server Operating System Support Information
- TOP Server How-To Videos / Tutorials
- TOP Server How-To Application Notes
- TOP Server Quick Start Guide
- TOP Server Troubleshooting Guide
- IEC 60870-5-101 Help File
- IEC 60870-5-104 Help File

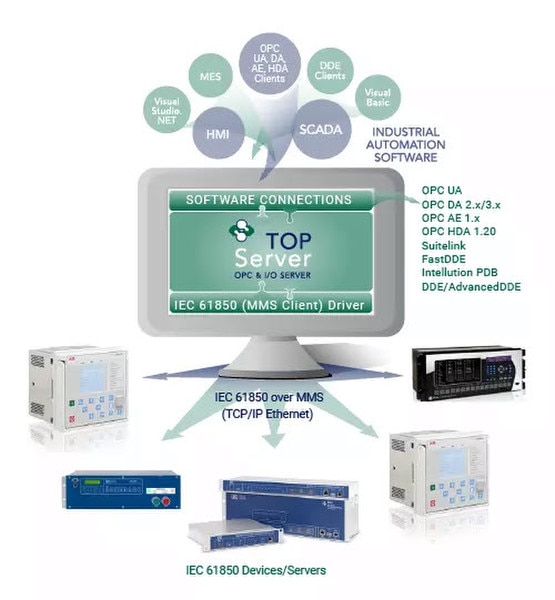

- IEC 61850 MMS Client Help File
- DNP3 Ethernet Help File
- Modbus TCP Ethernet Help File
- Modbus RTU Serial Help File
- Modbus ASCII Serial Help File
- UCON (User-CONfigurable) Help File
- TOP Server Data Sheet
- TOP Server current/past release notes
- TOP Server License Agreement
- TOP Server Drivers / Driver Suites / Plug-ins List
- Software Toolbox Knowledge Base
Communication
Protocols Supported
DNP3, IEC 60870-5, IEC 61850, Modbus, SNMP
Connection Types
Ethernet, Serial RS-232/422/485
Baud Rates
300 to 115200 baud (serial)
Max Devices per Channel
256 channels, 65,535 devices per channel
SCADA Systems & RTUs
- DNP3-compatible RTUs and Master Stations
- IEC 60870-5 Telecontrol Equipment
- IEC 61850 Substation IEDs
- Modbus RTUs and PLCs
- Network Infrastructure Devices (SNMP)
Power Generation Equipment
- Generator Controllers
- Protective Relays
- Power Quality Meters
- Energy Management Systems
Distribution & Transmission
- Substation Automation Equipment
- Feeder Automation Devices
- Capacitor Bank Controllers
- Voltage Regulators
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
- Seamless connectivity to RTUs, IEDs, outstations and other widely used power and utilities equipment from any number of manufacturers via supported standards in a common communications layer
- Supports common open standards including DNP3, IEC 60870-5, IEC 61850, Modbus, and more
- Extensive connectivity for most software applications including HMI, SCADA, MES, and ERP, as well as database applications (such as SQL, Access, and Oracle)
- Highly scalable using 10 drivers across small, medium and large applications with dozens up to thousands of devices
- Secure communications from client to device across various network architectures
- Flexible connectivity options with included user-configurable and custom drivers
- DNP3 Protocol Support
- IEC 60870-5 Telecontrol
- IEC 61850 Substation Automation
- Modbus Protocol Suite
- SNMP Network Monitoring
- Redundancy Support
- Time Synchronization
- Unsolicited Messaging
- Security Features
- Multi-Master Support
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment
Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
