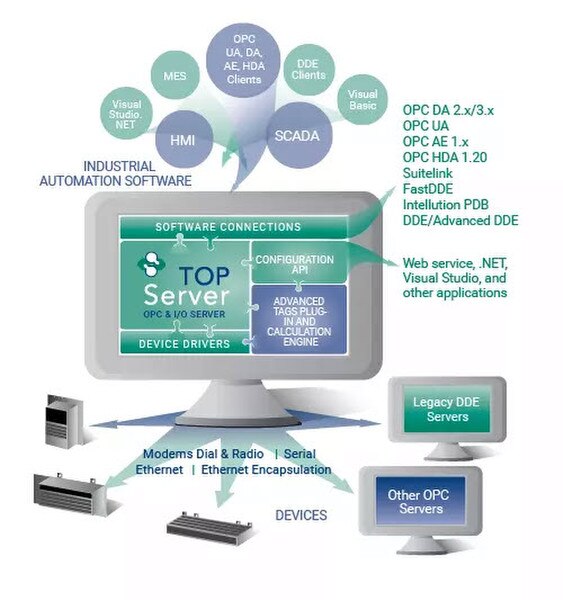

The TOP Server® Opto 22 Ethernet Driver provides a communication interface to Opto 22 Ethernet controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.
This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Opto 22 Ethernet SNAP Industrial Controllers (SNAP PAC S-Series, SNAP PAC R-Series and SNAP-LCE), SNAP Brains (SNAP PAC EB-Series, SNAP Ultimate I/O, SNAP Ethernet I/O and SNAP Simple I/O), and E1 and E2 Brain Boards using either the MMIO Ethernet protocol over TCP/IP or UDP connections or the CONT over Ethernet protocol over TCP/IP connections.
Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Available as a standalone real-time data driver or as part of the TOP Server Manufacturing Suite, this driver delivers enterprise-grade reliability for Opto 22 control systems.

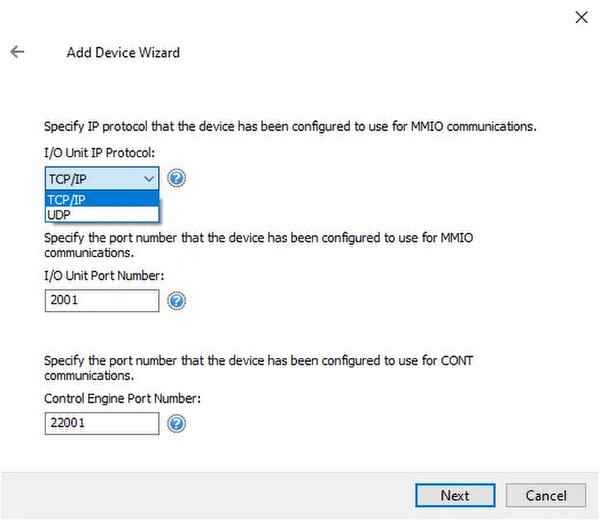

✓Supports TCP/IP and UDP Ethernet Protocol
✓Supports Memory Map (MMIO) and Strategy Variables (CONT) protocols
✓Memory types supported for MMIO Protocol: Analog Points, Digital Points (4-Channel Digital Modules), High Density Digital (HDD) Points, Point Configuration, Alarm, Scratch Pad (SNAP PAC Controllers and Ultimate Brains Only), PID
✓ Memory types supported for CONT Protocol: Variables (I32, I64, F, S, T), Tables (I32T, I64T, FT, ST), Analog Points, Digital Points
✓Automatic Tag Database generation for plug and play ease of use

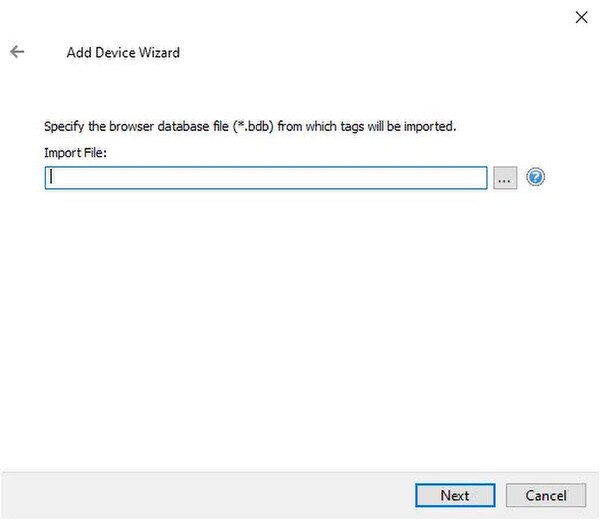

✓ Supports Automatic Tag Database Generation via the Opto Browser Configurator tool file (*.bdb file)
✓Includes Opto 22 specific error messaging
✓ Optimized communications allow each device to have a separate thread/channel of communications (up to 100 devices)
✓ User-selectable socket connection termination on device response timeout
✓Specify a Network Interface Card at the channel level
Communication
Protocols Supported
MMIO Ethernet, CONT over Ethernet
Connection Types
TCP/IP, UDP
Max Devices per Channel
256 channels, 65,535 devices per channel
Everything you need to get started, configure, and troubleshoot your driver
TOP Server Operating System Support Information
Additional resources and documentation
TOP Server How-To Videos / Tutorials
Video tutorials and application guides
TOP Server How-To Application Notes
Video tutorials and application guides
TOP Server Quick Start Guide
Video tutorials and application guides
TOP Server Troubleshooting Guide (HTML)
Video tutorials and application guides
TOP Server Troubleshooting Guide (FAQ)
Video tutorials and application guides
Opto 22 Ethernet Driver Help File (PDF)
Driver documentation and help files
TOP Server current/past release notes
Driver documentation and help files
Looking for OPTO 22 hardware?
Additional resources and documentation
Selectable Network Adapter (NIC) Feature Details
Additional resources and documentation
Don't See Your Device Listed? Contact Us
Additional resources and documentation
Software Toolbox Knowledge Base
Additional resources and documentation
SNAP PAC Controllers
- ✓SNAP PAC S-Series
- ✓SNAP PAC R-Series
- ✓SNAP-LCE
SNAP Brains
- ✓SNAP PAC EB-Series
- ✓SNAP Ultimate I/O
- ✓SNAP Ethernet I/O
- ✓SNAP Simple I/O
Brain Boards
- ✓E1 Brain Board
- ✓E2 Brain Board
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
- ✓ TCP/IP and UDP Protocol Support
- ✓MMIO and CONT Protocol Support
- ✓ Automatic Tag Database Generation
- ✓ Optimized Multi-threaded Communications
- ✓ Socket Connection Control
- ✓ Selectable Network Interface Card
- ✓ Opto 22 Specific Error Messaging
- ✓ Array Addressing Support
- ✓ Default Port Configuration
- ✓ Firmware Compatibility
