ODBC Client Driver for TOP Server And IO Driver + 1 Year Support & Maintenance Agreement
The TOP Server ODBC Client Bridge Driver provides a communication interface to databases as long as the database has an ODBC interface available (examples include Access, SQL Server, Oracle, and others).

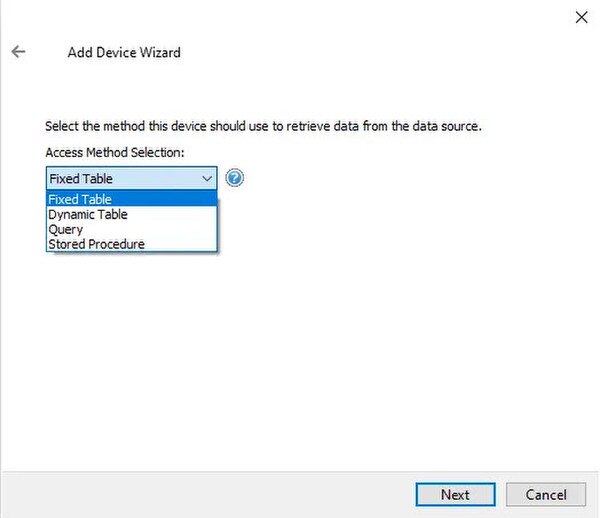

The driver is positioned as a bridge from database data to OPC UA, OPC DA, and AVEVA SuiteLink. It can read and write database data using four access methods: fixed table, dynamic table, query, and stored procedure. The driver can automatically generate tags in TOP Server based on tables, queries, and stored procedures.
Data acquisition is optimized based on upstream client demand, and data integrity is supported via extensive error handling.
If you need to log data from other TOP Server drivers on a regular or triggered basis, the page recommends considering the TOP Server DataLogger plug-in instead.
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment
Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
OPC Connectivity
Full OPC DA and OPC UA server functionality enables seamless integration with:
- → SCADA systems (Ignition, Wonderware, GE iFIX)
- → Historians (OSIsoft PI, Canary, InfluxDB)
- → MES and ERP systems
- → Custom applications via OPC client libraries
Cloud Integration
Combine with Cogent DataHub or OPC Router for cloud connectivity:
- → AWS IoT Core and Azure IoT Hub
- → MQTT broker connectivity
- → RESTful API integration
- → Unified Namespace (UNS) architectures
ODBC Databases
Microsoft Access
Microsoft SQL
MySql
Oracle
Sybase
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
Everything you need for reliable industrial connectivity
