MTConnect Client TOP Server + 1 Year Support & Maintenance Agreement
Provides a TOP Server communication interface for shop-floor equipment that exposes data via the MTConnect standard.
MTConnect is an open manufacturing connectivity standard maintained by the MTConnect Institute, aimed at connecting shop-floor technologies to monitoring/analysis applications.

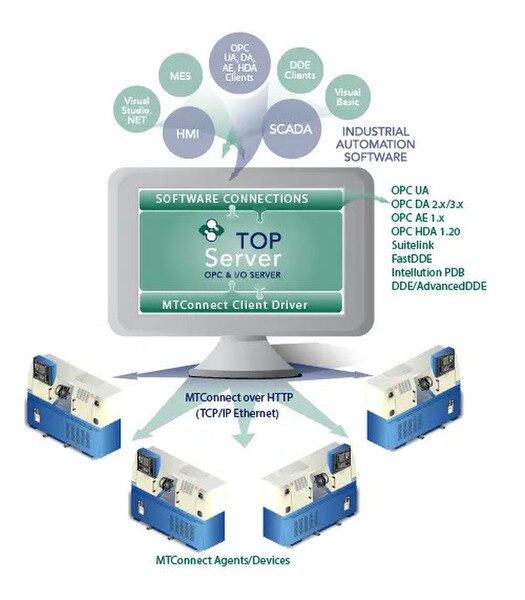

Helps deliver real-time operational data into client applications (such as HMI, SCADA, Historian, MES, ERP, and custom apps) through TOP Server interfaces.
Available as a standalone driver and also as part of the TOP Server Manufacturing Suite.
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment
Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
OPC Connectivity
Full OPC DA and OPC UA server functionality enables seamless integration with:
- → SCADA systems (Ignition, Wonderware, GE iFIX)
- → Historians (OSIsoft PI, Canary, InfluxDB)
- → MES and ERP systems
- → Custom applications via OPC client libraries
Cloud Integration
Combine with Cogent DataHub or OPC Router for cloud connectivity:
- → AWS IoT Core and Azure IoT Hub
- → MQTT broker connectivity
- → RESTful API integration
- → Unified Namespace (UNS) architectures
MTConnect Compliant Devices
Any machine tool or agent that supports the MTConnect protocol.
Must support MTConnect V1.1 through V1.6 or V2.0 (with XML 1.0 schema validation enabled or disabled).
KV-5MTConnect V1.7 and V1.8 are supported only when XML schema validation is disabled. 000
Note: The driver is intended to connect to an MTConnect agent; direct connections to an adapter or device can fail.
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
Scales (per TOP Server instance) up to 1024 channels and 256 devices per channel; practical limits depend on system resources and architecture.

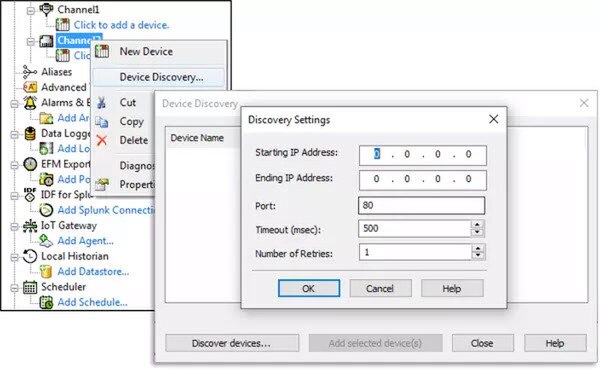

Automatic discovery of MTConnect devices/agents.
Automatic Tag Generation for faster onboarding.
Supports MTConnect Event and Condition data.
Supports MTConnect CURRENT and PROBE commands.
Supports MTConnect Data Item Sets.
