MQTT Client TOP Server And IO Driver + 1 Year Support & Maintenance Agreement
The TOP Server MQTT Client driver provides a communication interface to MQTT brokers with the same level of performance, stability and ease of configuration as any other TOP Server driver. Once the data is in TOP Server you can expose it via OPC DA, OPC UA, or AVEVA SuiteLink, and use TOP plug-ins for logging, OPC A&E, and more.
MQTT (Message Queue Telemetry Transport) is a lightweight message protocol used to connect a wide variety of IIoT (Industrial Internet of Things) and industrial automation devices using a publish and subscribe model for communications. MQTT is commonly used for connecting sensor networks and as a standard embedded interface on next generation industrial automation equipment and devices, especially in widely distributed applications. A typical architecture is that such equipment and devices publish data to a centralized MQTT broker, either in the cloud or hosted on premise.

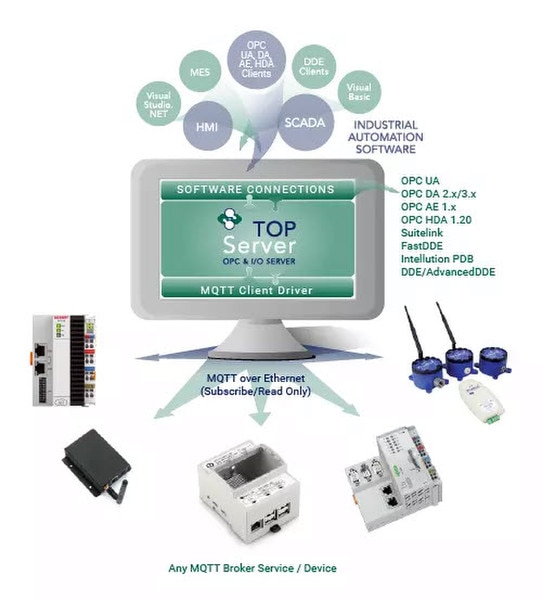

The MQTT Client driver enables TOP Server as an MQTT translator, providing a reliable method for reading data from any MQTT broker by client applications such as HMI, SCADA, Historian, MES, ERP, and custom applications via TOP Server’s standard client interfaces including AVEVA SuiteLink, OPC UA, and OPC DA.
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment
Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
OPC Connectivity
Full OPC DA and OPC UA server functionality enables seamless integration with:
- → SCADA systems (Ignition, Wonderware, GE iFIX)
- → Historians (OSIsoft PI, Canary, InfluxDB)
- → MES and ERP systems
- → Custom applications via OPC client libraries
Cloud Integration
Combine with Cogent DataHub or OPC Router for cloud connectivity:
- → AWS IoT Core and Azure IoT Hub
- → MQTT broker connectivity
- → RESTful API integration
- → Unified Namespace (UNS) architectures
MQTT Brokers & Devices
Any MQTT broker or any device acting as an MQTT broker (examples include)
Wzzard Wireless Sensing Technology from B+B Smartworx (Advantech)
Meshlium from Libelium
Certain MQTT Gateways from Proudlink
PFC100 and PFC200 Controllers from WAGO
EK9160 from Beckhoff
Industrial IoT Gateway from EpiSensor
Maestro from CD Innovation
Edge Gateway from Maple Systems
Core Development Kit from M5Stack
HiveMQ
Mosquitto
Google Cloud IoT Core
Amazon AWS IoT Core
Any broker/device that publishes data in a JSON format
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
Everything you need for reliable industrial connectivity
Scale limits (per TOP Server instance): up to 60 channels (broker connections) and up to 1024 devices per channel (MQTT topics); practical limits depend on system resources and architecture.

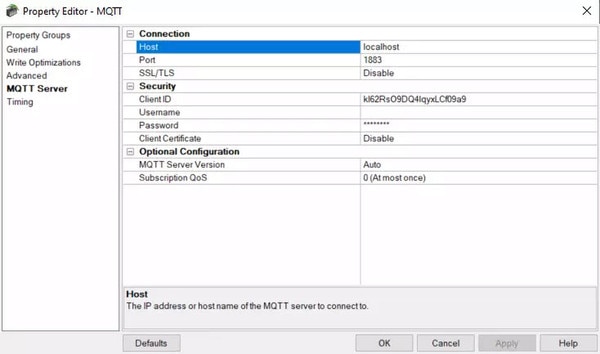

Acts as an MQTT client by subscribing to any MQTT broker (read-only).
Secure connection design aligned with modern security best practices.

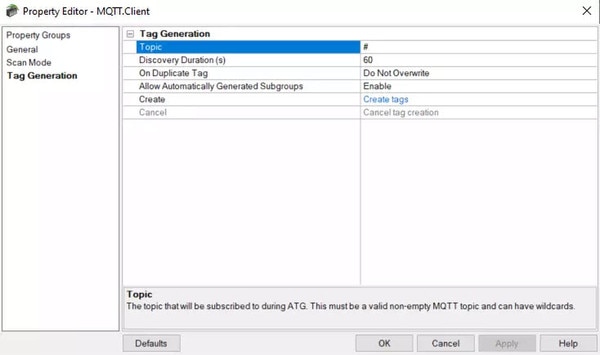

Supports Automatic Tag Generation (ATG) to simplify configuration.
