The TOP Server Intelligent Actuator Super SEL driver provides a communication interface to Intelligent Actuator's Super SEL actuators/controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.
It exchanges data between OPC UA, OPC DA, SuiteLink and DDE clients and IA Super SEL (Type E & G) and X-SEL devices over serial or Ethernet connections (supporting the Super SEL or X-SEL protocol).
Data acquisition is optimized based on client demand while data integrity is ensured using extensive error handling.
The driver supports up to 100 channels with full 8-axis motion control support for connected devices, accessing all IA Super SEL memory types including Input Port, Output Port, Flags, Axis Status, Axis Control, Point Data, Variables, Program Execution, Test Controller, Reset Controller, and Error Messaging.
Available as a standalone driver or as part of the TOP Server Manufacturing Suite for industry-specific applications.
- ✓High Capacity Support – Supports up to 100 channels and 1 device per channel (practical limits vary by system resources)
- ✓Full 8-Axis Motion Control – Complete support for 8-axis motion control for connected devices with precise axis positioning
- ✓Comprehensive Memory Type Support – Supports all IA Super SEL memory types: Input Port, Output Port, Flags, Axis Status, Axis Control, Point Data, Variables, Program Execution, Test Controller, Reset Controller, and Error Messaging
- ✓Ethernet Encapsulation – Ethernet encapsulation support for communication via Ethernet-to-Serial converters or device/terminal servers
Proven benefits that help you deploy faster and operate more reliably
Full Motion Control Support
Complete 8-axis motion control capability for precise actuator positioning and control
Flexible Connectivity
Support for serial (RS-232/422/485) and Ethernet-encapsulated connections for versatile deployment
Comprehensive Data Access
Access to all Super SEL memory types for complete device monitoring and control

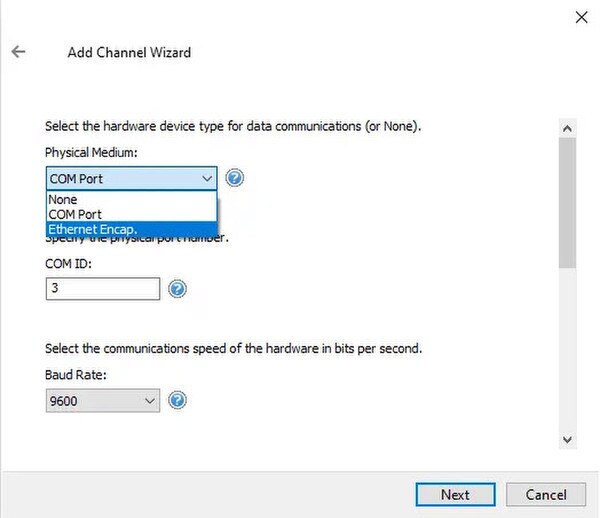

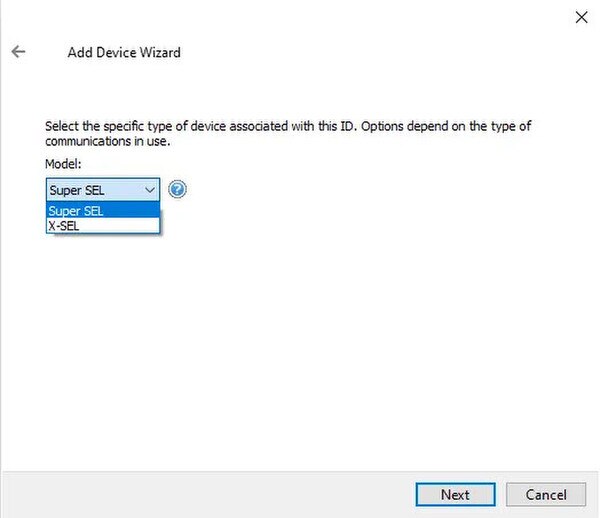

Easy Configuration
Wizard-based setup and intuitive properties editor for rapid deployment

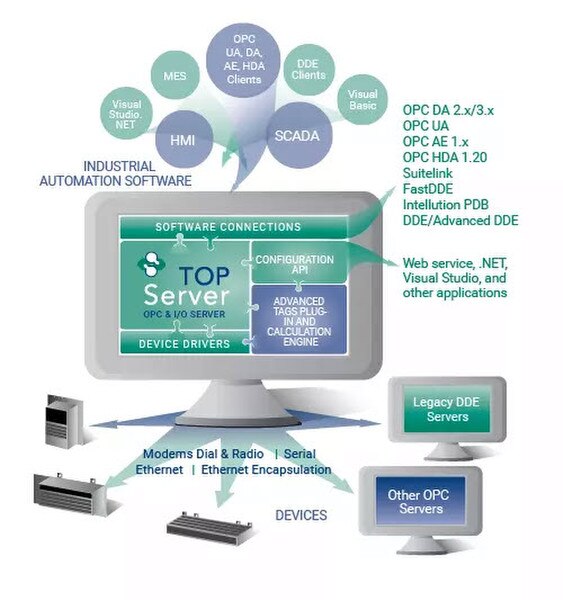

OPC Connectivity
Full OPC DA and OPC UA server functionality enables seamless integration with:
- →SCADA systems (Ignition, Wonderware, GE iFIX)
- →Historians (OSIsoft PI, Canary, InfluxDB)
- →MES and ERP systems
- →Custom applications via OPC client libraries
Cloud Integration
Combine with Cogent DataHub or OPC Router for cloud connectivity:
- →AWS IoT Core and Azure IoT Hub
- →MQTT broker connectivity
- →RESTful API integration
- →Unified Namespace (UNS) architectures
Everything you need to get started, configure, and troubleshoot your driver
Operating System Support Information
OS compatibility details
TOP Server How-To Videos / Tutorials
Walkthrough videos for configuration and use
TOP Server How-To Application Notes
Step-by-step application guides
TOP Server Quick Start Guide
Get up and running quickly
TOP Server Troubleshooting Guide
Common issues and solutions
Current/Past Release Notes
Latest updates and changes
Super SEL Driver Help File
Complete driver documentation
Software Toolbox Knowledge Base
Searchable support articles
Intelligent Actuator Hardware Website
Visit manufacturer's website
- ✓Multi-Threaded Architecture – Multi-threaded architecture for high scalability and performance
- ✓Wizard-Based Configuration – Wizard-based configuration interface with intuitive properties editor for easy setup
- ✓Secure User Management – Built-in secure user management for access control
- ✓Device & Network Redundancy – Built-in device and network redundancy for high availability
- ✓Auto-Demotion – Auto-Demotion feature enables slow polling on communication loss to reduce network load
- ✓Diagnostics Logging – Extensive communication and diagnostics logging for troubleshooting
Everything you need for reliable industrial connectivity
