The TOP Server® Fuji Flex Driver provides a communication interface to Fuji Flex controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver.

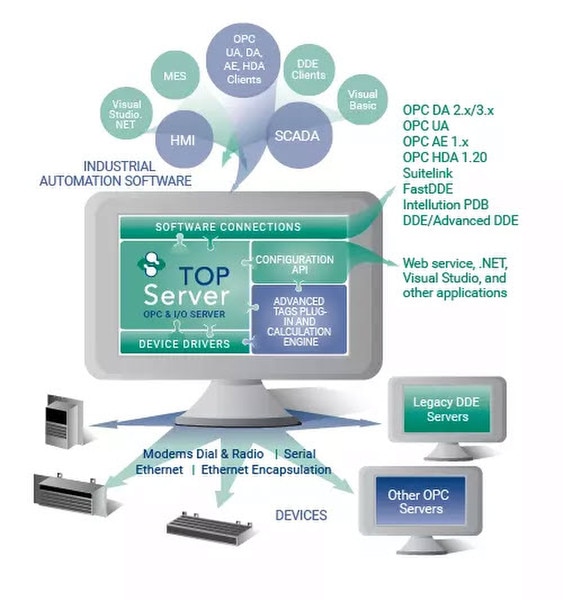

This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Fuji Flex PC N-Series devices supporting the Fuji Computer Link protocol over Serial or Ethernet Gateway/Terminal Server connections. Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Supported PLCs include the N series, including NB0, NB1, NB2, NB3, NJ, and NS
- Maximum Number of Channels & Devices: Channels - 100, Devices per Channel - 32 (NOTE: Practical channel/device limits will vary depending on your available system resources and communications architecture)

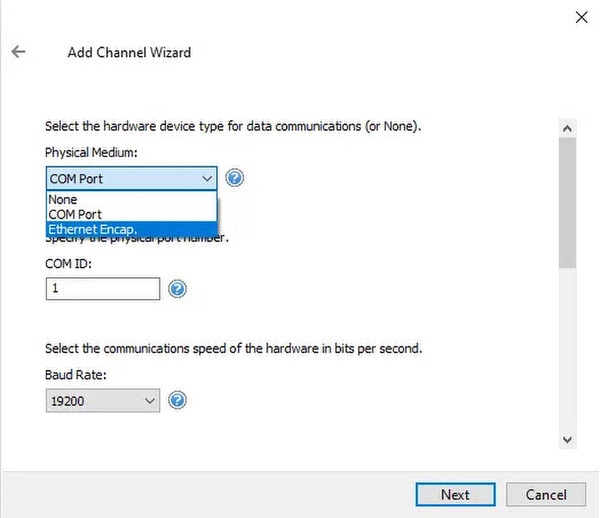

- Supports RS-232 or RS-485 (multidrop)
- Ethernet Gateways/Terminal servers supported
- Memory Types Supported: X, WX, Y, WY, M, WM, L, WL, T, WT, C, WC, S, D
- All data types are supported
- User-configurable block size setting to optimize communication with device
- Supports Ethernet Encapsulation for using Ethernet-to-Serial converter
OPC Connectivity
Full OPC DA and OPC UA server functionality enables seamless integration with:
- SCADA systems (Ignition, Wonderware, GE iFIX)
- Historians (OSIsoft PI, Canary, InfluxDB)
- MES and ERP systems
- Custom applications via OPC client libraries
Cloud Integration
Combine with Cogent DataHub or OPC Router for cloud connectivity:
- AWS IoT Core and Azure IoT Hub
- MQTT broker connectivity
- RESTful API integration
- Unified Namespace (UNS) architectures
Everything you need to get started, configure, and troubleshoot your driver
Fuji Flex PC N Series
✓
NB0
✓
NB1
✓
NB2
✓
NB3
✓
NJ
✓
NS
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation
Everything you need for reliable industrial connectivity
Real-Time Data Access
Access live process data from your devices with minimal latency and maximum reliability.
Device Configuration
Device Configuration Read and write configuration parameters directly from your SCADA or HMI application.
Automatic Reconnection
Intelligent connection management automatically recovers from network interruptions.
Multi-Protocol Support
Supports multiple communication protocols for flexible deployment options.
High Performance
Optimized algorithms deliver maximum throughput with minimal system overhead.
Diagnostic Logging
Comprehensive logging helps troubleshoot issues and monitor driver performance.

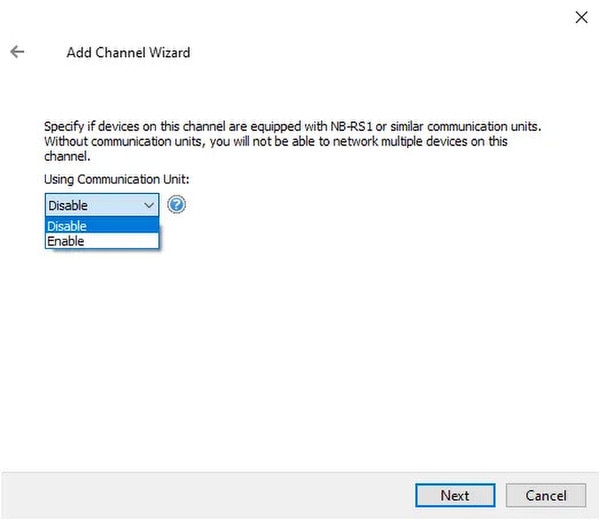

- Option to enable "Using Communication Unit" setting if communicating with an N series PLC through a communications unit (such as the NB-RS1)
- User-configurable block size setting to optimize communication with device
- Supports Ethernet Encapsulation via Ethernet/Serial converters, Ethernet Device or Terminal servers
- Modem Support: Automatic dial configuration, Multiple phone number management
- Adjustable RTS Flow timing for Radio Modem communications
- Multi-Drop Serial Communications
