The TOP Server EUROMAP 63 driver provides a communication interface to injection molding machines (IMMs) supporting EUROMAP 63 with the same level of performance, stability, and ease of configuration as any other TOP Server driver.
EUROMAP 63 is an open source, file-based protocol commonly used for data access to Injection Molding Machines (IMMs). It is widely used by IMM manufacturers as a standard interface for third-party data collection. Some well-known IMM manufacturers supporting EUROMAP 63 include Cincinnati Milacron, Fanuc, Engel, Sumitomo DEMAG, Toyo, and KraussMaffei.

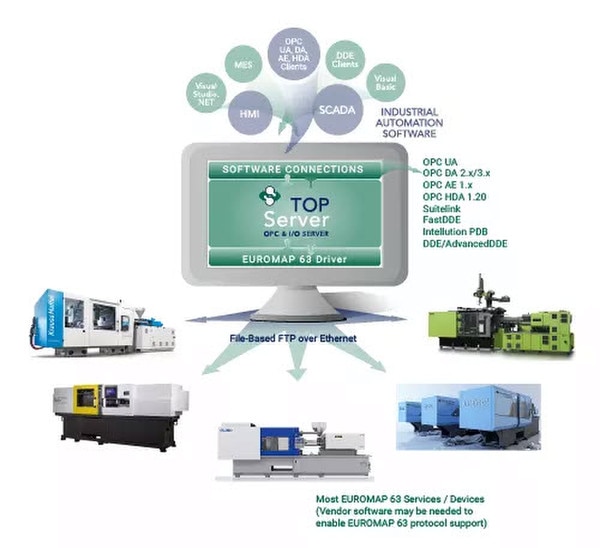

The EUROMAP 63 driver provides a reliable method for connecting any EUROMAP 63 capable IMM to client applications such as HMI, SCADA, Historian, MES, ERP, and custom applications via TOP Server's standard client interfaces across multiple industries including Tier 1 and 2 automotive, pharmaceuticals, food/beverage, consumables, electronics and packaging.

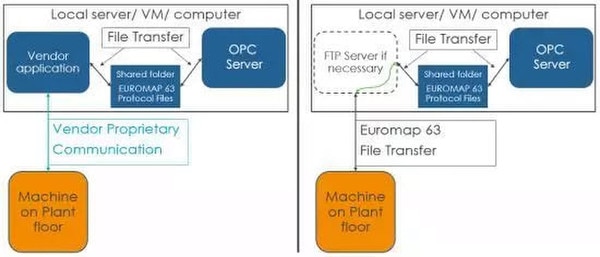

NOTE: Some injection molding machine manufacturers retrofit these devices with the ability to enable EUROMAP 63, while others provide an application to receive EUROMAP 63 requests, communicate with the device using its proprietary protocol and deliver EUROMAP 63 responses. Because of these differing architectures, third party software may be required to use the EUROMAP 63 driver.
Looking for EUROMAP 77 Support? An OPC UA Client driver is available for connectivity to EUROMAP 77 IMMs.
Proven benefits that help you deploy faster and operate more reliably
Production Optimization
Real-time access to IMM data enables production monitoring and optimization across multiple industries
Flexible Configuration

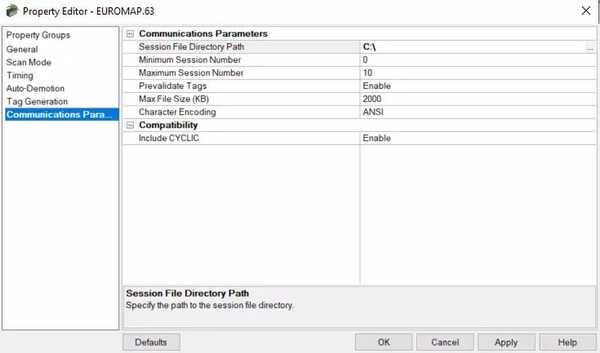

Configurable min/max session numbers, file sizes, shared session directories with UNC path support
Client Certificate Validation
Enhanced security with client certificate validation and unique session range enforcement
Industry Standard Protocol
Open source EUROMAP 63 standard supported by major IMM manufacturers worldwide
Communication
Protocols Supported
EUROMAP 63 (File-based FTP over Ethernet)
Connection Types
TCP/IP Ethernet, UDP/IP Ethernet
Baud Rates
1024 channels & 16 devices per channel
OPC Connectivity
Full OPC DA and OPC UA server functionality enables seamless integration with:
- → SCADA systems (Ignition, Wonderware, GE iFIX)
- → Historians (OSIsoft PI, Canary, InfluxDB)
- → MES and ERP systems
- → Custom applications via OPC client libraries
Cloud Integration
Combine with Cogent DataHub or OPC Router for cloud connectivity:
- → AWS IoT Core and Azure IoT Hub
- → MQTT broker connectivity
- → RESTful API integration
- → Unified Namespace (UNS) architectures
Everything you need to get started, configure, and troubleshoot your driver
TOP Server Operating System Support Info
Information about operating system compatibility and requirements
TOP Server How-To Videos / Tutorials
Main landing page with a library of how-to videos covering installation, general overview, troubleshooting tools, driver quick starts, and other TOP Server configuration topics
TOP Server How-To Application Notes
Support knowledge base with application notes, guides, and FAQs for TOP Server
TOP Server Quick Start Guide
Getting started guide covering TOP Server basics, installation, and sample projects
TOP Server Troubleshooting Guide
Comprehensive troubleshooting documentation for resolving common issues
Current/Past Release Notes
View the complete TOP Server release history and version information
EUROMAP 63 Driver Help File
Complete driver documentation and configuration guide in PDF format
Software Toolbox Knowledge Base
Access comprehensive support documentation and troubleshooting resources
Supported Injection Molding Machines
Cincinnati Milacron
ENGEL
FANUC
KraussMaffei
Sumitomo Demag
TOYO
Wittmann Battenfeld
Most other EUROMAP 63-compliant injection molding machines
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
Everything you need for reliable industrial connectivity
File-Based Protocol
EUROMAP 63 file-based FTP protocol provides standardized data access to injection molding machines

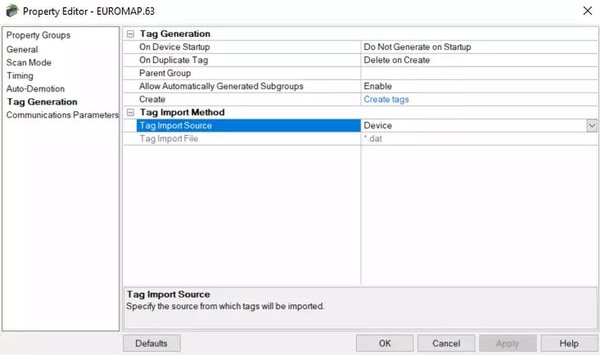

Automatic Tag Generation
Online and file-based automatic tag generation for simplified configuration
Comprehensive Data Type Support
Read/Write support for Boolean, Byte, Char, Short, Word, Long, DWord, INT, Float, String plus arrays
Multi-Language Support
Localized language support for English, German, Japanese, and Simplified Chineses.
