The TOP Server Cutler-Hammer OPC Drivers Suite provides comprehensive connectivity to Cutler-Hammer (Eaton) programmable logic controllers and control systems. This suite includes three specialized drivers covering the D50/300 series and ELC series controllers, supporting both Ethernet and serial communications.

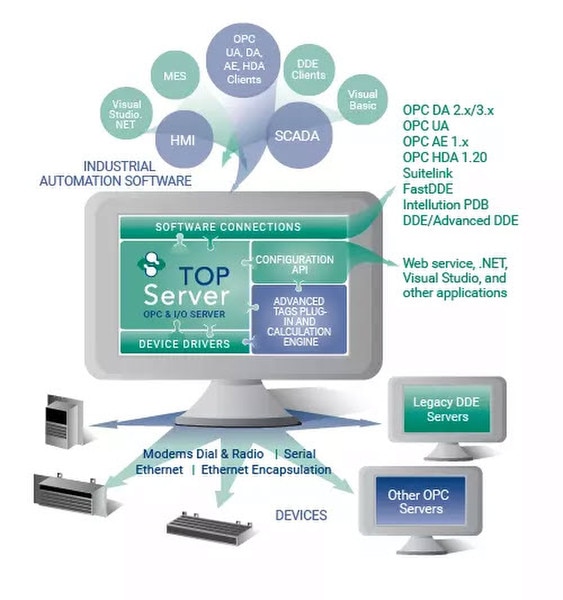

Cutler-Hammer, now part of Eaton Corporation, manufactures industrial automation and control products widely used in manufacturing, material handling, and process control applications. This suite enables seamless integration of Cutler-Hammer devices with OPC-compliant HMI, SCADA, historian, and MES systems.
The suite includes drivers for D50/300 Series PLCs via serial communications, and ELC Series controllers via both Ethernet and serial protocols, providing flexible connectivity options for legacy and modern installations.
With support for multi-drop serial networks, comprehensive data type access, and TOP Server's proven reliability, this suite provides a complete solution for Cutler-Hammer/Eaton device integration in industrial automation environments.
Drivers Included:
- ✔Addressing support for Discrete Inputs, Discrete Outputs, Main Relay, Timer Status, Step Point, Timer Current Value, Counter Current Value, Data Register, and string data types

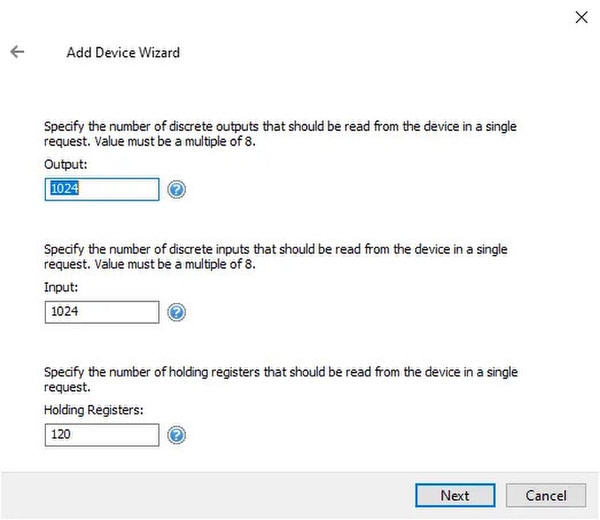

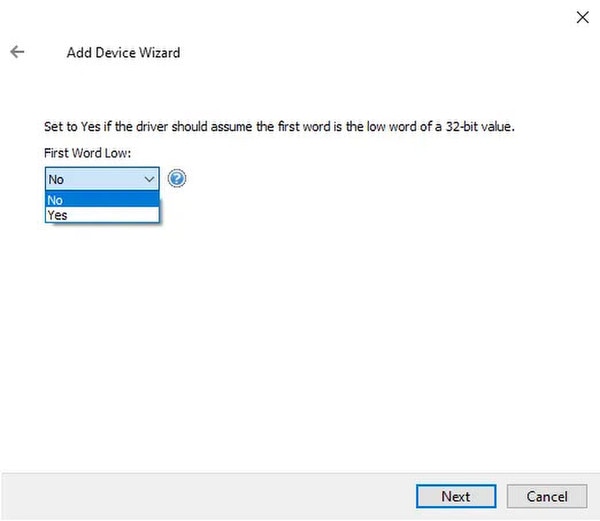

- ✔User-configurable Block Reads and First Word Lo/Hi option for 32-bit data types
- ✔Supports Ethernet encapsulation via Ethernet/Serial converters or Ethernet device/terminal servers
- ✔Cutler-Hammer specific error messaging
- ✔Supports multi-drop RS-485 (1 to N)
- ✔Configurable setting for Two-Step Method and Four-Step Method communication with device
- ✔Complete coverage of Cutler-Hammer controller families: D50, 300, and ELC Series
- ✔Flexible connectivity: Ethernet TCP/IP and Serial RS-232/RS-422/RS-485 protocols
- ✔Seamless integration with OPC DA, OPC UA, and AVEVA Suitelink
- ✔Support for Allen-Bradley OEMax devices
Everything you need to get started, configure, and troubleshoot your driver
TOP Server Operating System Support Information
Comprehensive OS compatibility guide for all TOP Server versions
TOP Server How-To Videos / Tutorials
Main landing page with a library of how-to videos covering installation, general overview, troubleshooting tools, driver quick starts, and other TOP Server configuration topics
TOP Server How-To Application Notes
Support knowledge base with application notes, guides, and FAQs for TOP Server
TOP Server Quick Start Guide
A comprehensive video guide showing TOP Server basics, installation, and getting started with a sample project
TOP Server Troubleshooting Guide
Comprehensive guide to diagnose and resolve common issues
Cutler-Hammer D50/D300 Serial Help File
Complete documentation for D50/D300 Series serial driver setup and configuration
Cutler-Hammer ELC Ethernet Help File
Complete documentation for ELC Series Ethernet driver setup and configuration
Cutler-Hammer ELC Serial Help File
Complete documentation for ELC Series serial driver setup and configuration
Current/Past Release Notes
View the complete TOP Server release history and version information
TOP Server Data Sheet (PDF)
Comprehensive product overview and specifications
TOP Server License Agreement
View the software license terms and conditions
Software Toolbox Knowledge Base
Access the complete knowledge base for additional support resources
Looking for Eaton Cutler-Hammer Hardware?
Visit Eaton's website for Cutler-Hammer hardware information and purchasing
✔Memory Types Supported: M, K, F, R, W, PV, SV, TC, SR, L
✔Multi-threaded architecture for high scalability
✔Runtime changes via wizard-based configuration interface with intuitive Properties Editor
✔Secure User Management
✔Built-in Device/Network Redundancy
✔Auto-Demotion (Slow Polling)
✔Extensive communication and server diagnostics (OPC / Communications / Event Log)
ELC Series Controllers
- ✔ELC-PA
- ✔ELC-PB
- ✔ELC-PC
- ✔ELC-PV
- ✔Any ELC Series Controller
D50/D300 Series PLCs
- ✔D300 Series
- ✔D50 Series
Compatible Devices
- ✔Allen-Bradley OEMax devices
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
Everything you need for reliable industrial connectivity
D50/300 Series Support
Complete connectivity to Cutler-Hammer D50 and 300 Series PLCs via serial protocols
ELC Ethernet Connectivity
High-speed Ethernet TCP/IP communication with ELC Series controllers
ELC Serial Support
RS-232/RS-485 serial connectivity for ELC Series in distributed installations
Multi-Drop Communications
Support for multi-drop serial networks to minimize cabling in distributed systems
Comprehensive Data Access
Read/write access to inputs, outputs, registers, timers, counters, and system data
Real-Time Monitoring
High-performance data collection for real-time visualization and control
- ✔Automatic device discovery and tag browsing where supported
- ✔Configurable scan rates per device and tag group for optimized performance
- ✔Support for block reads to minimize network traffic
- ✔Error handling with automatic retry logic
- ✔Timestamping for historical data collection and trending
- ✔Support for ASCII and binary communication modes where applicable
- ✔Integration with TOP Server's Advanced Tags Plug-In for calculations and aggregations
- ✔ Compatible with TOP Server redundancy solutions for high availability
