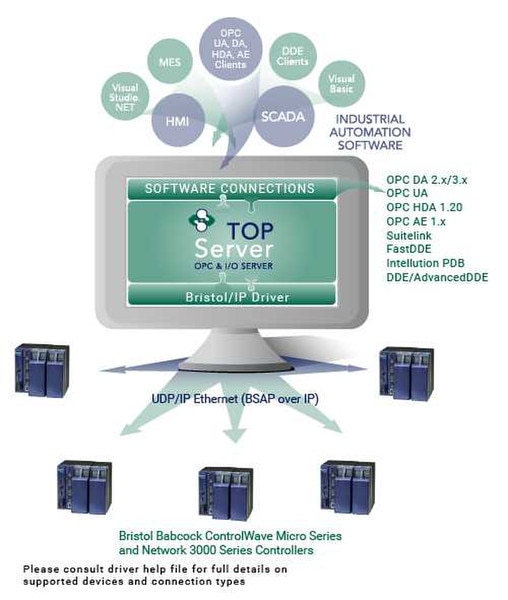

The TOP Server Bristol/IP driver provides a native communication interface for connecting, managing, monitoring, and controlling Bristol Babcock (Emerson) devices supporting the Bristol Standard Asynchronous Protocol (BSAP) over IP. This includes Network 3000 and ControlWave family controllers, RTUs and flow computers.
The Bristol/IP Driver provides an easy and reliable way to read and write data to Bristol Babcock devices through client applications (including HMI, SCADA, Historian, MES, ERP, and countless custom applications). There are no artificial/license-based limits on the number of tags and devices you can connect. Technical practical limits apply and are covered below.
Available here as a standalone real-time data driver or also available in the following vertical Industry Suite: TOP Server Oil & Gas Suite.
Address and Symbolic Read/Write Support
Supports communications serialization (multiple protocols over same communications link)
Bristol/IP Error Messaging
Multi-Level Network Support
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment

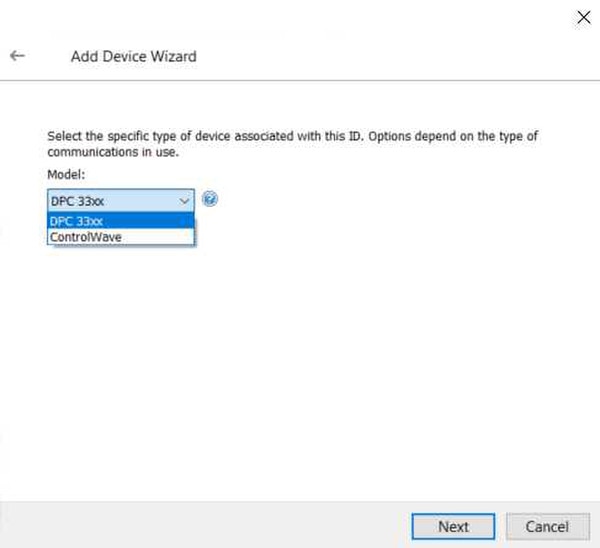

Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
OPC Connectivity
Full OPC DA and OPC UA server functionality enables seamless integration with:
- SCADA systems (Ignition, Wonderware, GE iFIX)
- Historians (OSIsoft PI, Canary, InfluxDB)
- MES and ERP systems
- Custom applications via OPC client libraries
Cloud Integration
Combine with Cogent DataHub or OPC Router for cloud connectivity:
- AWS IoT Core and Azure IoT Hub
- MQTT broker connectivity
- RESTful API integration
- Unified Namespace (UNS) architectures
Everything you need to get started, configure, and troubleshoot your driver
TOP Server How-To Videos / Tutorials
How-to guides and application examples
TOP Server How-To Application Notes
How-to guides and application examples
TOP Server Quick Start Guide
How-to guides and application examples
TOP Server Troubleshooting Guide
How-to guides and application examples
Current/Past Release Notes
Driver documentation and help file
Bristol/IP Driver Help File (PDF)
Driver documentation and help file
Technical Blog
Articles, tutorials, and technical insights
- Native communications (no local OpenBSI required)
- Address and Symbolic Read/Write Support
- Bristol/IP Error Messaging
- Configurable Block Size
- Multi-Level Network Support
- Multiple Tag Generation
- TOP Server Built-In Features
- CWP/LPS/CWR models, firmware 02.00 or above
- 386EX Protected Mode DPC3330/3335 with PES03/PEX03 or newer firmware
- Device Client or Device Server support
Note: BSAP IP (Ethernet) support
Note: Don't See Your Device Listed? Contact Us
Supports communications routing up to 6 levels through a local Bristol device client to Bristol device servers

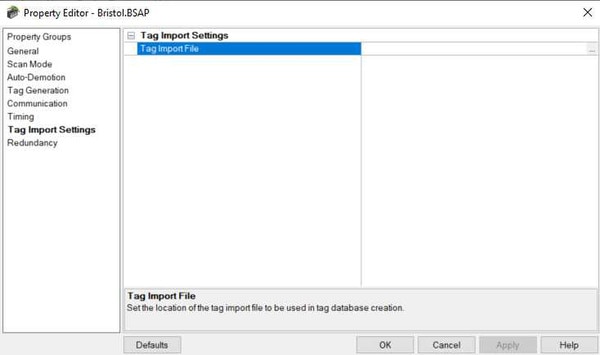

Automatic Tag Database Generation through .SIG file import from OpenBSI Software
Channel Serialization (multiple drivers/protocols on the same channel, e.g. for radio communications)Â
