The TOP Server® Analog Devices 6B Driver provides a communication interface to Analog Devices controllers with the same level of performance, stability and ease of configuration as any other TOP Server driver. This driver provides data exchange between OPC UA, OPC DA, SuiteLink and DDE clients and Analog Devices 6B series I/O modules supporting the Analog Devices ASCII protocol with Optional Checksum over Serial connections and Ethernet connections using Ethernet Gateways/Terminal Servers.

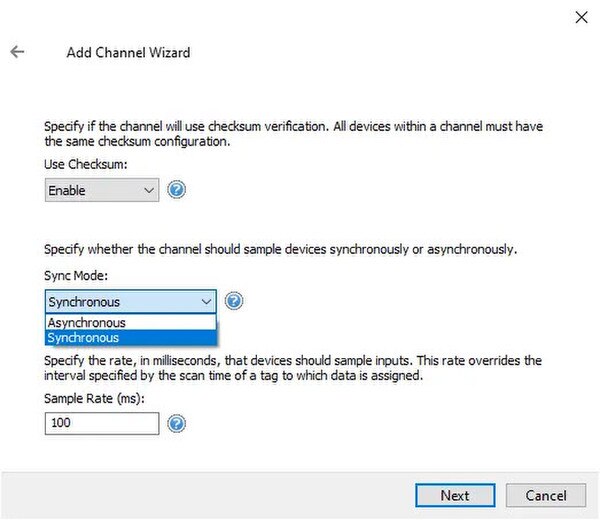

This driver allows you to take advantage of the synchronous acquisition mode that some of these devices provide. Using this mode, data can be sampled synchronously from each connected device at a programmable interval anywhere from 100 ms to 24 hrs.
Data acquisition is optimized based on upstream client demand while data integrity is ensured using extensive error handling.
Proven benefits that help you deploy faster and operate more reliably
Fast Setup & Deployment
Configure in minutes with intuitive setup wizards
Enterprise-Grade Security
Encrypted connections and role-based access control
Real-Time Performance
Sub-second updates with optimized polling algorithms
Unlimited Scalability
Support for hundreds of devices per channel
Communication
Protocols Supported
Analog Devices ASCII with Optional Checksum
Connection Types

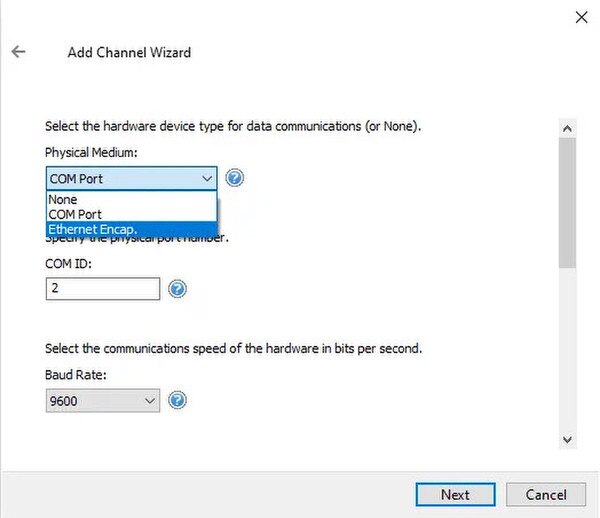

Serial (RS-232, RS-422, RS-485), Ethernet Encapsulated Serial
Baud Rates
Configurable
Max Devices per Channel
256 per channel
Proven solutions across multiple industries
Process Control
Monitor and control analog inputs and digital I/O in manufacturing processes with real-time data access.
- ✔️Real-time monitoring
- ✔️Synchronized data sampling
- ✔️Optimized acquisition
Data Acquisition
Collect data from multiple 6B modules with synchronous sampling for time-critical applications.
- ✔️100ms to 24hr intervals
- ✔️Multi-device synchronization
- ✔️High-speed sampling
Remote Monitoring
Connect to I/O modules over Ethernet using terminal servers for distributed installations.
- ✔️Ethernet encapsulation
- ✔️Remote accessibility
- ✔️Centralized monitoring
Everything you need to get started, configure, and troubleshoot your driver
TOP Server Operating System Support
Information about supported operating systems and compatibility requirements.
TOP Server How-To Videos / Tutorials
Library of how-to videos covering installation, troubleshooting, and driver quick starts.
TOP Server How-To Application Notes
Support knowledge base with application notes, guides, and FAQs for TOP Server.
TOP Server Quick Start Guide
A 23:07 video that shows TOP Server basics, installation, and project configuration.
TOP Server Troubleshooting Guide
Comprehensive guide to diagnose and resolve common connectivity issues.
Analog Devices 6B Help File (PDF)
Complete driver documentation with setup instructions and configuration examples.
Current/Past Release Notes
View the complete TOP Server release history and version information.
Software Toolbox Knowledge Base
Access our comprehensive knowledge base for additional technical resources.

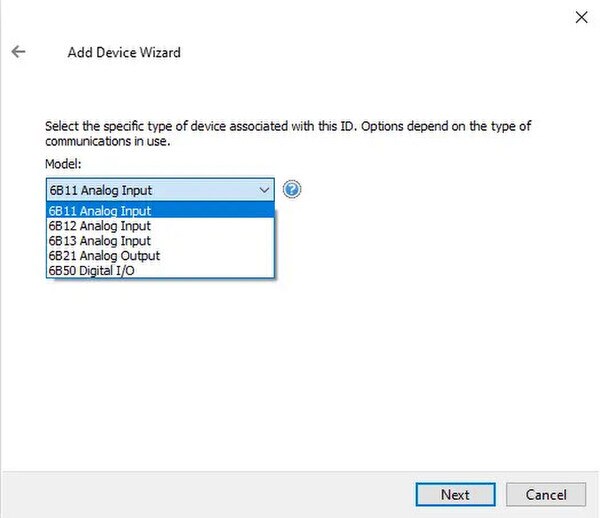

Analog Input Modules
- ✓6B11 – Analog Input Modules
- ✓6B12 – Analog Input Modules
- ✓6B13 – Analog Input Modules
- ✓6B21 – Analog Input Modules
Digital I/O Modules
- ✓6B50 – Digital I/O Modules
Note: For a complete list of supported models and firmware versions, please contact our technical support team or download the driver documentation.
